Small Angle Laser Scattering

Product number:LaScater
Product description

Laser scattering belongs to an important branch of light scattering, which is characterized by the use of lasers as light sources. The greatest advantages of lasers are their extremely high brightness, small divergence angle, and excellent coherence. The high brightness makes the laser scattering signal much higher than other types of scattering techniques; the small divergence angle makes laser scattering ideal for small-angle scattering studies, maximizing the sensitivity of the technique to surface profiles and shape distributions; and the excellent coherence makes it easy to apply the technique to dynamical studies, i.e., dynamic light scattering.


Technical Specifications

Laser wavelength

390 - 780 nm

Power

1-100 W

Particle size measurement range

20 nm – 2 μmm

Single measurement time

0.1 s – 60 s

Detector type

Optional zero-dimensional point detector,   one-dimensional array detector, two-dimensional planar detector

Sample environment

Temperatures gradient (-196 ~ 300   °C), vacuum, air, etc.


Applications

1、Metal surface analysis

2、Polymer film

3、Solution dynamics

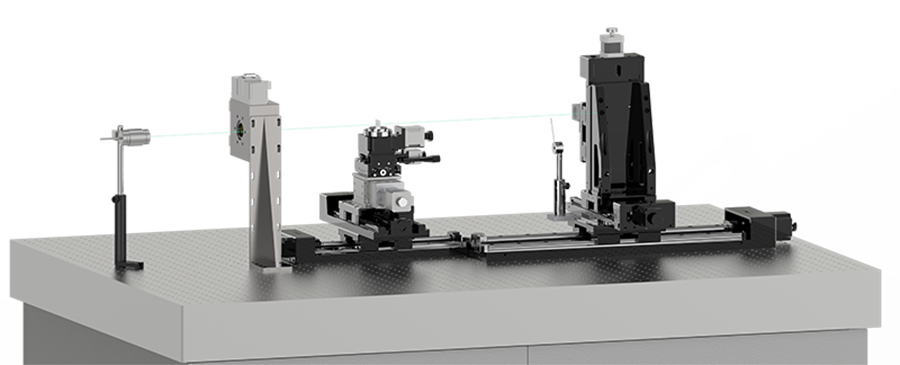

Product Image
