MiniSAXS Desktop Small Angle X-ray Scatterometer

Product number：MiniSAXS
Product description

MiniSAXS is equipped with a high-brightness microfocus X-ray source and a highly sensitive detector to accurately analyse the structural properties of materials at the nanoscale. The all-in-one design eliminates complex optical path adjustments and is customised for laboratory users, overcoming space constraints with its compact and portable design.

Technical Specifications
FunctionalityWAXS, SAXS, GIWAXS, GISAXS
X-ray source targetCu, Mo, Ag, etc. are available as targets for microfocus X-ray source
Collimation system

Collimated pinhole system with filter unit

Sample stag

Standard 3-axis sample stage: 16-position powder sample holder, 16-position solid sample holder

Multi-dimensional grazing incidence and rotating sample stage

Detector

2D Silicon Array Single Photon Counting Detectors

Continuous readout, no dead time, no readout noise or dark current

Pixel 75 μm × 75 μm

dynamic range 32 bits

Distance from sample to detectorSD range 40 mm - 350 mm

Scattering vector

6.3 nm-1 - 0.063 nm-1

Characterization range

1 nm - 100 nm

Instrument dimensions

840 mm×750 mm×700 mm

Power supply

AC220 V,50 Hz(single phase)


Applications

Petrochemicals、Coal and steel、New material、New energy、Nanomaterials、Medicine

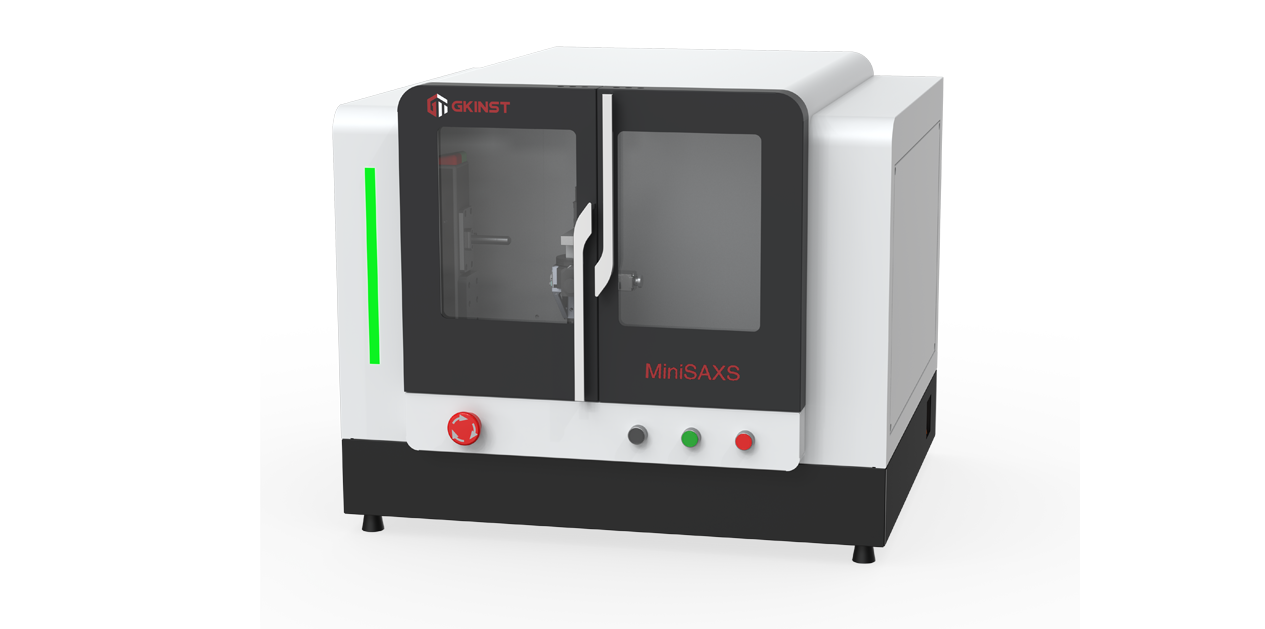

Product Image
